ST-2218C 15-Axis CNC Tenoner

1.Automatic feeding and discharging, equipped with advanced numerical control system, simple and easy operation, high degree of automation, high production efficiency, processing efficiency can reach 22 per minute.
2.Automatic clamping and positioning, simultaneous processing at both ends, high efficiency and precision, reducing labor intensity of workers.
3.The structure of the all-enclosed hood adopts the centralized dust removal design, so the external dust is small, and it is clean and environmentally friendly.

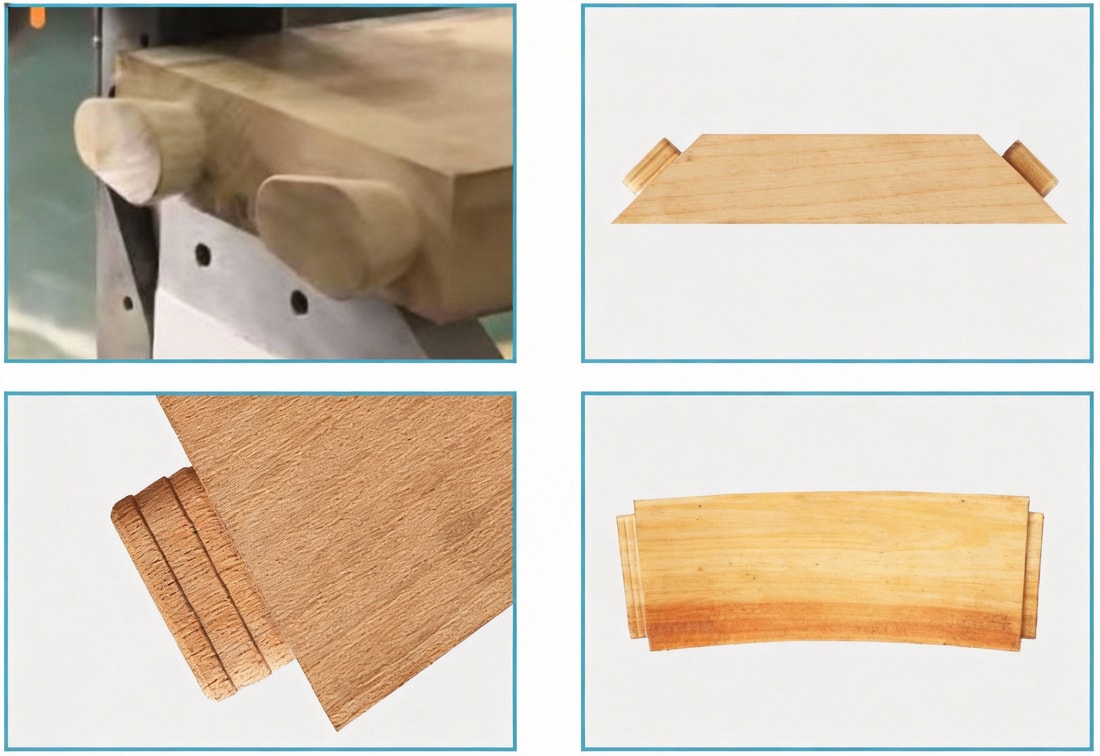

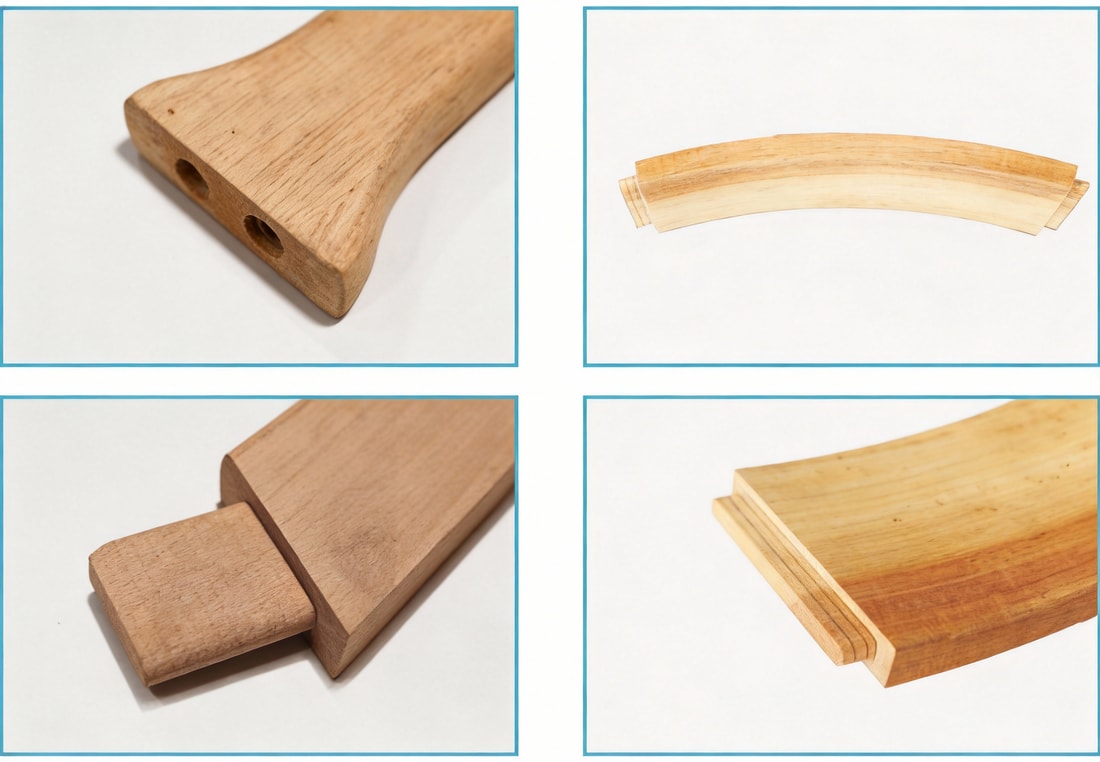

4.It is capable of processing tenon of various shapes such as square, rectangle, waist round, round, and oblique tenon, etc. It is widely used for the tenon processing of furniture such as doors, tables and chairs.
5.Momentive separation, effectively prevent accidents at work.

Model

ST-2218C

Processing length range

220-2000mm

Max. processing width range

10-180mm

Max. processing thickness range

5-70mm

Tongue length range

40mm

Tenon width

150mm

Mortise thickness

70mm

Horizontal swing angle

+45° ~ -5°

Vertical swing angle

+45° ~ -5°

Chamfered corner

yes

Swing angle method

 Automatic

Spindle speed

12000r/min

Total power

24.5kW

Dimensions

4280*2600*1980mm

Weight

3100kg
